Intense Lighting with Wide Angles of View.
POWERLIGHT RED & GREEN ADDED.
SEARCHLIGHT OPTION, RED & GREEN ADDED.
NO changes in prices. NO OTHER CHANGES
SEARCHLIGHT OPTION, RED & GREEN ADDED.
NO changes in prices. NO OTHER CHANGES
I deal with individual aeromodellers only.
These NEWLY INTRODUCED devices ( similar to the previous HYPER lights) are VERY intense and particularly suitable for NAV LIGHTS.
The WHITE LANDING LIGHT that goes with these lights is of equal high intensity.
The RED & GREEN are a matched pair and an angle of view of 85°.
These are OUTSTANDING lights and I really recommend them to you.
NAV & LANDING LIGHTS RED GREEN and WHITE. AMBER and a BLUE (a real nice POLICE BLUE) now available available for orientation lights.
BEFORE ordering these devices, particularly WHITE, please check with me that they ARE in stock, as supplies are extremely limited and there is approx a 30 day waiting time for new stock from the supplier/importer.
I am hoping that these lights will continue to be imported as they really are exceptional lights.
The POWERCHIP (WHITE) AND the POWERLIGHT (all colours) are excellent substitutes. SEE BELOW for details.

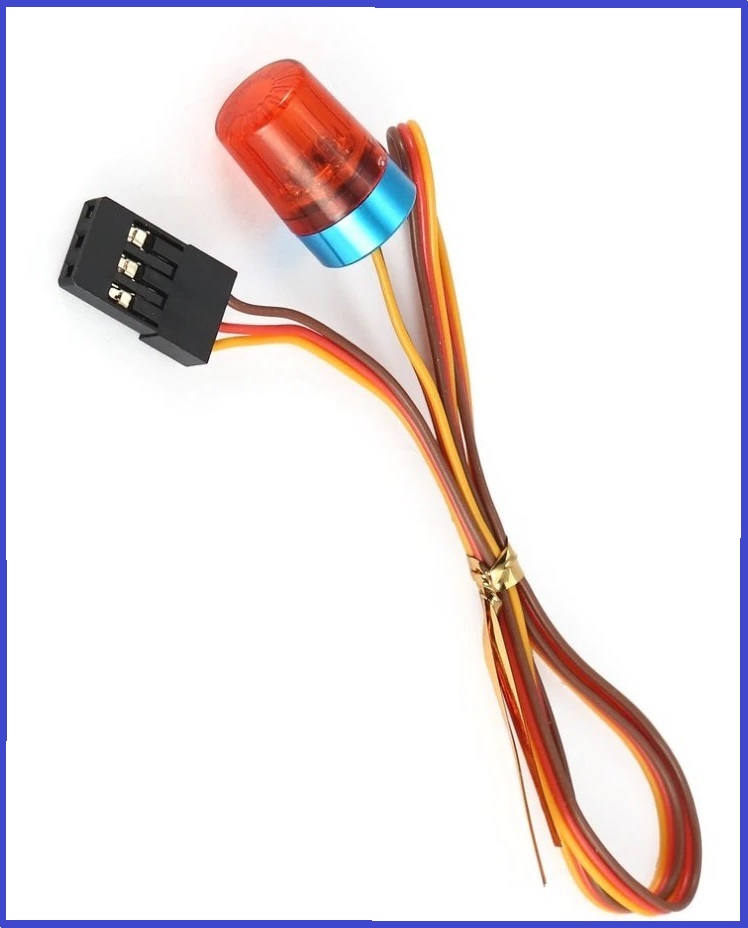

red high intensity lighting devices (operating alternately) in the "fade up/peak intensity /fade down" mode
(similar to the rotating red lights seen on modern aircraft) or "Lighthouse effect".
Solid state. Controlled by programmed processor.
It can also operate with the POWERCHIP very high intensity WHITE lighting device if required.
Max voltage 6v without a resistor in the power supply line.
Other voltages up to 12v will require a resistor of appropriate value (10-15 ohm 1/4w ) inserted between power source and pcb unit.
Similar packaging as flashers mentioned below.
MAKES A SUPERB LANDING LIGHT OR TAIL ORIENTATION LIGHT
5mm PowerChip WHITE (only) with VERY HIGH intensity AND a BIG 120° Angle of View.
With its outstanding light yield and current consumption of 80 milliamps/3.5v (Max luminous flux is 34 Lumens per Watt) and with light efficiency of 121 Lumens per watt - this Multichip Power LED is the world's most efficient 5mm LED.
This is an amazing lighting device.
It has proved to be one of the MOST intense 5mm diameter lights I have seen and tested on 4.8v and 6v.
Modellers have asked for very, very high intensity 5mm diameter landing lights
...THIS is the one ...especially when fitted to one of these reflectors (a perfect slop-free fit)
Highly recommended as a landing light.

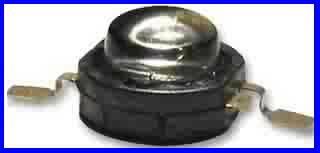

Available in WHITE and once again available in RED and GREEN. Quite an intense lighting device at 80 lumens/ 1 watt.
The POWERLIGHT really does not need a reflector - it is very powerful without -
A reflector with a landing light is usually required for scale appearances.
THESE ARE THE ONLY types that will allow a POWERLIGHT to be fitted.
The POWERLIGHT SNAPS INTO PLACE from the rear of the reflector.
Front of bowl 26mm. Rear of bowl 8mm. Front to back measures 16.5mm.
The reflector can however accomodate 8mm/10mm lighting of the typical LED standard shape.
It can also accomodate the DOMED ULTRALIGHT -by "fiddling"
i.e using silicone adhesive etc as a mounting.
WILL COME with connecting power leads already soldered to them as soldering wires to them is quite tricky..
These are the most intense lights in small package lighting for modelling purposes.
They are outstanding sets of NAV LIGHTS showing TRUE COLOURS with superb, brilliant white landing lights.
will require YOU to solder a resistor to connecting wires and the wires to the lighting device
a very simple job for a modeller to perform.
3mm DIAMETER TYPES
- A VERY INTENSE SET -
These are VERY HIGH intensity 3mm types. ( RED, GREEN WHITE)
The WHITE very suitable for models requiring engine cowling mounted
landing lights (Cessna or other types) - or, main/nose oleo lights or even wingtip white "strobes".
Reflectors for these 3mm lights (as shown above and below) are available. .
The (RED, GREEN) navigation lights are ideal for fitting into helicopter stub wings on rear of fuselages (Agusta 109 etc.,)
4.8v to 6v
4.8v to 6v

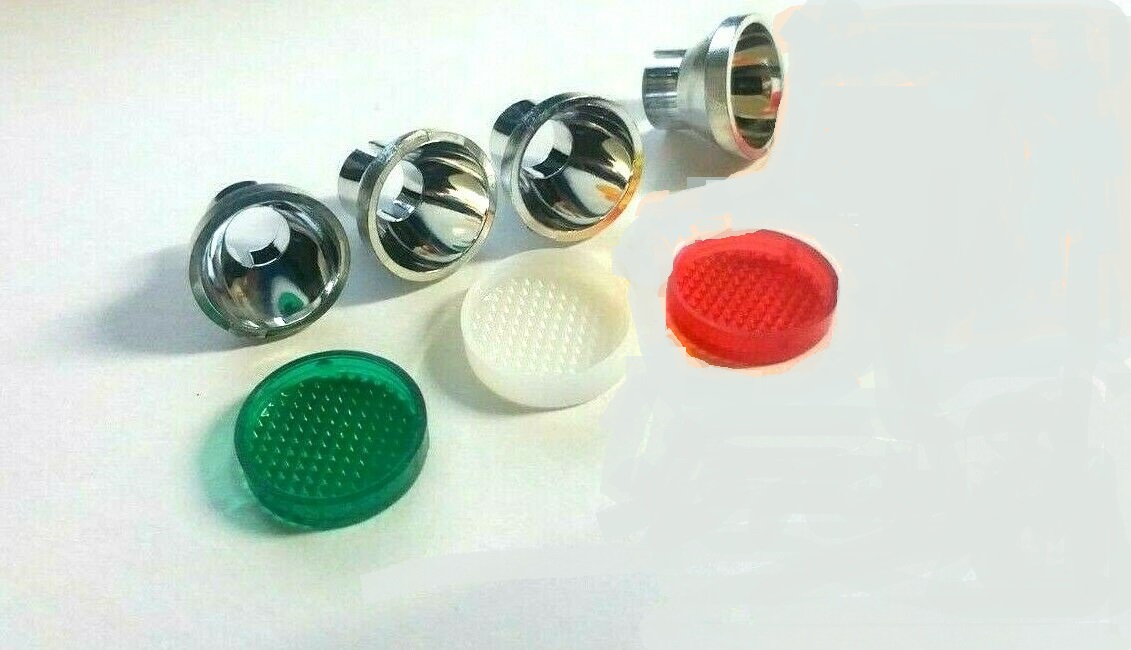

These scale- like reflectors are NOT sold to enhance brilliancy but as a scale accessory.
HOWEVER, when fitted with the 120 degree angle of view POWERCHIP lighting device, light is thrown some 15 to 20 feet.
Ideal for a landing light angled down from the nose of a helicopter. An excellent combination
Reflector size for BOTH 5mm and 3mm lighting devices as follows:
Bowl max diameter is 12mm and the total length of the reflector from front face to collar rear face is 8mm. The bowl is a highly polished "chrome" plastic and enhances the fitted light quite effectively. The front face has a lip to allow placement of an acetate lens cover.
Other types (look like torch reflectors) 14 mm 24mm AND a 40mm available (the latter with high polish finish).
(These will accept 5mm type devices as a loose fit.)
It should be noted however, these reflectors (14 mm and 24mm as they are metal types DO NOT FIT the SUPERLIGHT OR ULTRALIGHTS due their leads being axial and probable short circuits may occur if leads touch metal reflector. The SQUARE 70/80 type devices also do not fit.)
ROUND =10mm 15mm 20mm 25mm and 30mm.
Elliptical 25mm x 16mm - 30mm x 20mm - 42mm x 28mm
Please note that the supply of the above types of cover is sporadic and may be out of stock from time to time for a couple of weeks.
(Suppliers are a bit slow)
5mm types = OD: 22.5mm ID: 18.0mm Height= 10.0mm
ALSO
OD: 25mm ID: 20mm HEIGHT: 13mm
Other sizes are available on request in the following outside diameters:-
12/14/15/19/22/25/28/31/38/45/50/57/63mm
above 31mm these can be quite expensive.
3mm TYPES now available as six pack single colour or mixed.
5mm TYPES and above sold for the number you require at an individual price.

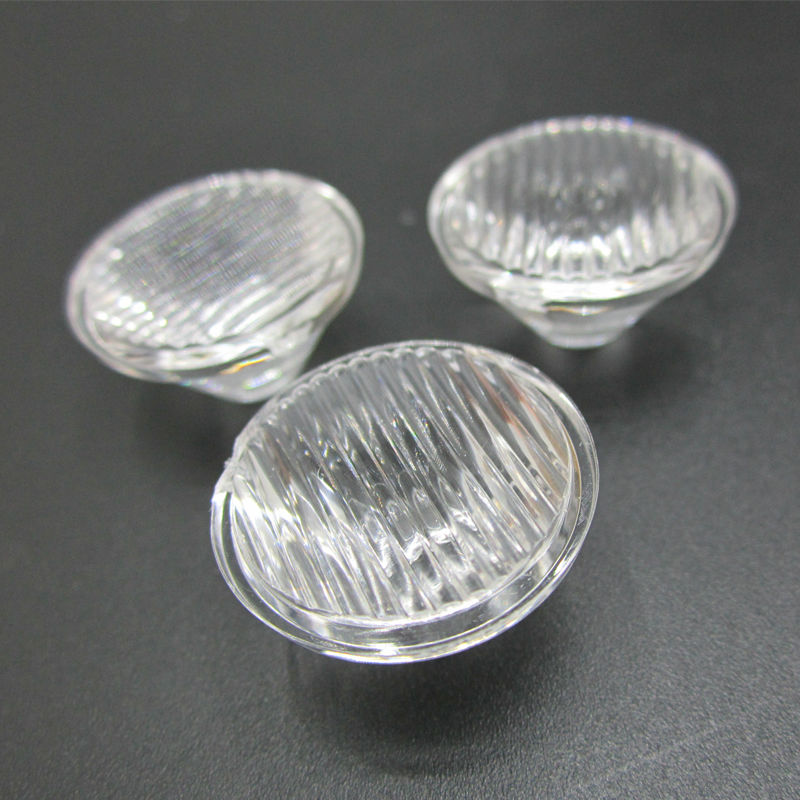

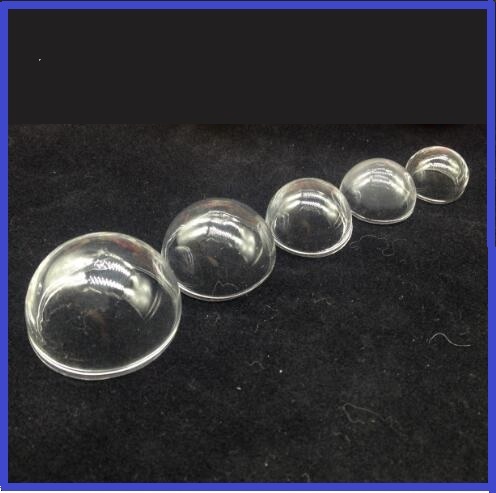

SOLID ACRYLIC NOT ACETATE
Green not available as it is really a yellow/green...more yellow than green!)
These covers are not something you come across in the local model shop.
The flasher comes as one of the following arrangemnents
OR (b) 2 RED 5mm in synchro for Obstruction/Hazard lights.
OR (c) 2 WHITE 5mm in synchro and 1 RED 5mm alternating Obstruction/Hazard light.
OR (d) 2 RED 5mm in synchro and 1 WHITE 5mm alternating. Obstruction/Hazard lights.
OR (e) 2 RED 5mm synchro & 2 WHITE 5mm alternating with RED 5mm and each other. Obstruction/Hazard lights.
OR (f) 2 WHITE 5mm synchro & 2 RED 5mm alternating with 3rd WHITE 5mm and each other. Obstruction/Hazard lights.
These units are approx 38mm long x 20mm wide by 5mm thick.
ALL THE ABOVE WILL HAVE 5mm HIGH INTENSITY LIGHTING DEVICES FITTED BUT I CAN FIT 3mm if requested, The 3mm are also high intensity.
Due to processor specifications
THIS FLASHER IS NOT SUITABLE FOR THE POWERCHIP VERY HIGH INTENSITY LIGHTING DEVICES.
THE UNIT LOOKS SIMILAR TO THAT SHOWN BELOW
WHITE FLASHER and/or RED OBSTRUCTION/HAZARD
strobe as some full size aircraft display.
Please note that this unit may be ordered with 2 of the NEW 5mm POWERCHIP VERY HIGH INTENSITY WHITE devices (120 DEGREE ANGLE OF VIEW) in place of the normal high intensity types. The POWERCHIP version using just one 5mm WHITE POWERCHIP device on 6v is of VERY HIGH INTENSITY almost like a camera flashgun. Using two, synchronised..phenominal!
Due chip specifications, the unit
will NOToperate a 5mm POWERCHIP
and a
5mm STANDARD high intensity red
together.
It WILL however, operate
(a) TWO WHITE 5mm POWERCHIPS TOGETHER
OR
(b) TWO HIGH INTENSITY 5mm REDS TOGETHER.
OR
(c) A STANDARD PAIR OF HIGH INTENSITY 5mm WHITES
OR
(d) ONE STANDARD 5mm RED AND ONE STANDARD 5mm WHITE
There will be a slight extra charge for the POWERCHIP VERY high intensity types as they are more expensive to buy in.
This simple SINGLE or DOUBLE SYNCHRONISED unit for RED and/or WHITE lighting devices comes as a lightweight, small rubberised heatshrink covered package (1.5 inch X 1/2 inch x 1/4 inch thick) / (38mm x 15mm x 7mm - all approximate measurements. Can be tucked away anywhere on board a model. Operates from 4.8v or 6v without modifications
THE UNIT LOOKS SIMILAR TO THAT SHOWN ABOVE AND ARE HANDMADE TO ORDER.
Resistors NOT required for flasher units which operate both on 4.8v
and 6v MAX.

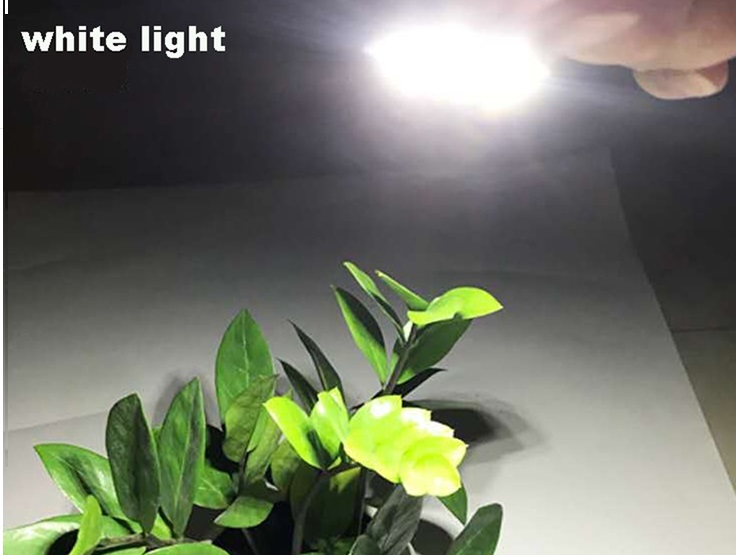

Fitted with an 80 Lumens cool running HIGH INTENSITY WHITE LIGHT device & collimating lens.
May also now be fitted with a RED or GREEN lighting device and used as a large model quite high intensity nav light. SIZE = 20mm diameter X 13mm front to back.
Throws an intense spot 1 FOOT diameter (300 mm) onto a flat surface from about 10 FEET (3m) away.
Similar type with heatsink sold by a well known German model helicopter firm for £30.00!
This is the same device WITHOUT the rear heatsink plate.
The lighting device can be removed from the unit for replacement if ever required.
Wired and comes with appropriate resistor to operate from 4.8v to 6v.
LARGE LIGHTHEAD
Can be used with both types of flasher if required at slight extra cost. Comes fitted with lighting device and 6" connecting wires.
LIGHTHEADS shown below are also available. See the PDF details.
NOTE:
ALL flashers will have approx 6 inches (152mm) of battery connecting wire and 6 inches of OUTPUT wires.
NOTE: From a flight safety point of view - (and plain common sense) - the lighting shown on this web page
should NOT be operated from the same battery supply as the receiver/servos.
Some of these lights make quite a demand of a battery pack.
Using a receiver battery pack is certainly not recommended.
4.8v is quite adequate but should be 1200 milliamps or more.
You CAN NOW OBTAIN AAA NiMH cells of 2500 milliamps which will be quite adequate for lighting.
YOU DO NOT NEED A HIGH VOLTAGE FOR LIGHTING as most devices use less than 4 volts
Voltages above the max voltage of a device without use of a resistor (or similar)
WILL result in destruction of the device.
Please state the voltage the lights will be operated from (4.8V TO 6V) BUT SEE safety note above.
The resistor value / wattage is mathematically worked out. This allows the lighting devices to operate at maximum brilliancy and efficiency. it should not be changed for any other value or wattage.
NOTE: SUPERLIGHTS/HYPERLIGHTS/ULTRALIGHTS/POWERLIGHTS
If not controlled by a resistor when battery operated or a special pcb circuit if a regulated voltage is used, can run quite hot. These lighting devices now included the appropriate voltage/wattage resistor for cool operations FROM 4.8V TO 6v. You just connect them up to the device and power supply as per the leaflet/diagram that comes with the devices.
These are superb NAVIGATION and LANDING LIGHTS as hundeds of modellers in the UK and overseas have already found out.

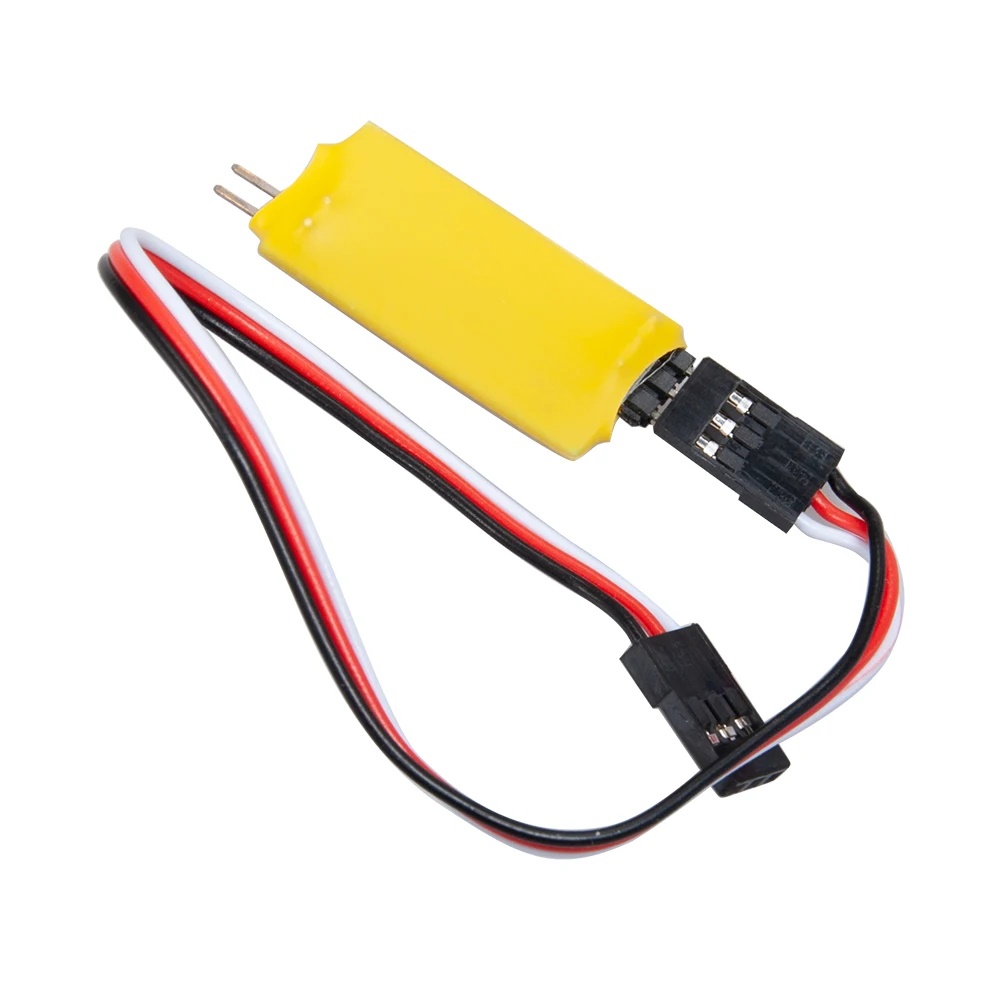

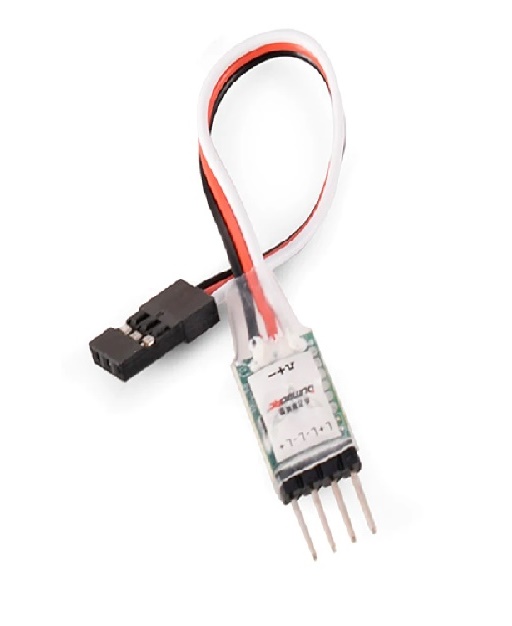

This is MICROPROCESSOR DUAL CHANNEL RC SWITCH
enabling it to operate switching of LANDING LIGHTS and any other lighting on the switch's 2 separate
channels from 2.4 ghz AND PPM/PCM transmitter/receivers.
This unit resembles in size and weight an RC extension lead 8 inches long.
Comes with manufacturers comprehensive instruction sheet (which you should read) showing various uses of the switch so that the full potential of the RC SWITCH can be understood and taken advantage of.
RC SWITCH MAX voltage is 6v.
I DO NOT MAKE UP LIGHTING WITH A WIRING HARNESS AS ALL MODELS ARE DIFFERENT.
BUTANE PENCIL TORCH
HEATSHRINK TUBING
This IS THE essential item you should use for wiring connection insulation
NOT sticky black plastic/Sellotape/Decorators masking tape OR - (Shudder)-Elastoplaster(s)!!
Several sizes from 1.3mm to 19.5mm.
All tubing shrinking at a 2:1 ratio.
Robust ON/OFF switches
Miniature Microswitches for retract or flap operated landing lights.
LIGHTING DEVICE HOLDER with connecting wire. They allow easy insertion and removal of SPOT type devices without soldering of devices.

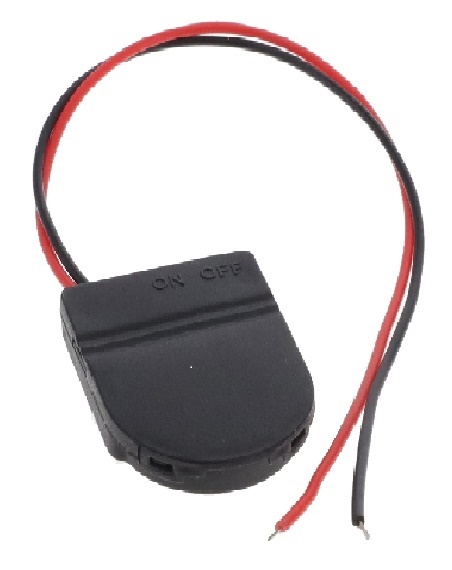

BATTERY BOX For 4.8v with its own ON/OFF switch.Screwed rear lid. Also standard open type 4.8v.
PP3 clip type available and a 2 x AA box with its own ON/OFF switch and screwed lid.
STANDARD HOOKUP WIRE.
THE correct type to use (do not use servo wire).
Seven stranded (1.5mm) diameter wire in several colours.
FLEXIBLE HOOKUP WIRE RED/GREEN/BLACK. 2.8mm diam. 6 AMP MAX
THIS ITEM NOT SENT OUTSIDE THE UK due to package weight/postal charges.
GENUINE
TYGON
OD5/16th ID3/16th (4.8mm)
THE BEST fuel tubing you can buy.
Connectors mainly in 3mm tubing sizes.
(WREN GT's). Ball valves on/off in 4mm and 6mm.
Tubing clips for secure 4mm AND 6mm tube routing-stick of 10 clips.
FILTERS available for 3 and 4 and 6mm tube.
THESE ARE QUALITY PLUGS AND SOCKETS
4 pin, 3 pin AND 2 pin SELF LOCKING robust plugs and sockets with crimps. 3 Amp max with
easy assembly. These are very sturdy types and can be used for connecting anything
you require in the way of model lighting. Use decent hookup wire with them not that thin RC, difficult to solder wire!
2 PIN 20mm LONG X 10 WIDE X 5mm THICK WHEN CONNECTED TOGETHER. Positive locking.
3 PIN AND 4 PIN 20mm LONG X 15mm WIDE X 5mm THICK WHEN CONNECTED TOGETHER. Positive locking.
ALSO
Very useful MINIATURE PLUGS (gold plated) and SOCKETS ready for wire attaching (solder).
Ideal for lighting connections where required. These can also be made up for extension leads. They also fit HITEC and FUTABA receivers and servo sockets and can be secured for extra safety by heatshrink tubing of the correct diameter (5mm).
Positive fitting - no slop - solid pins. As used in the electronics industry. MAX 3 amps.
No problem with lighting.

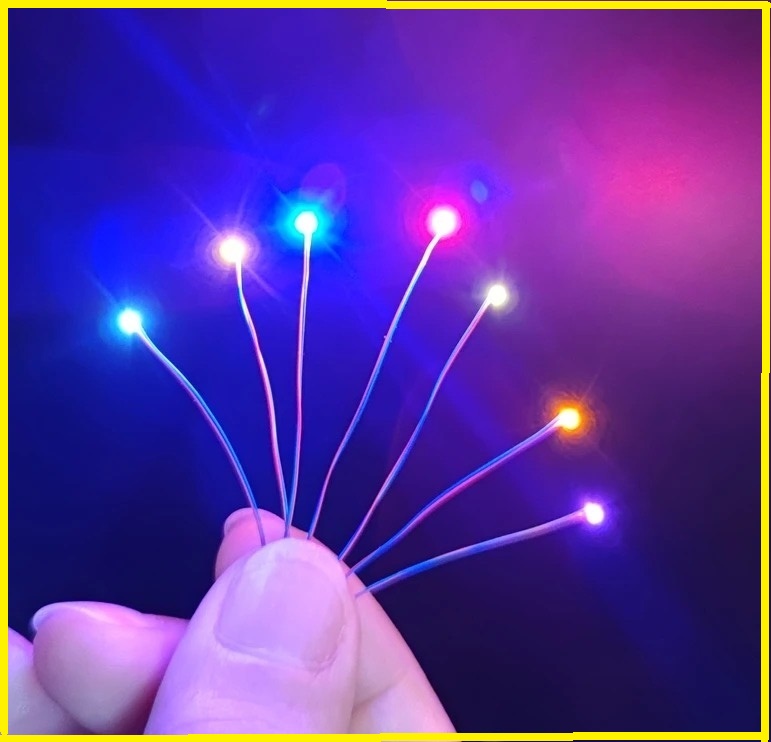

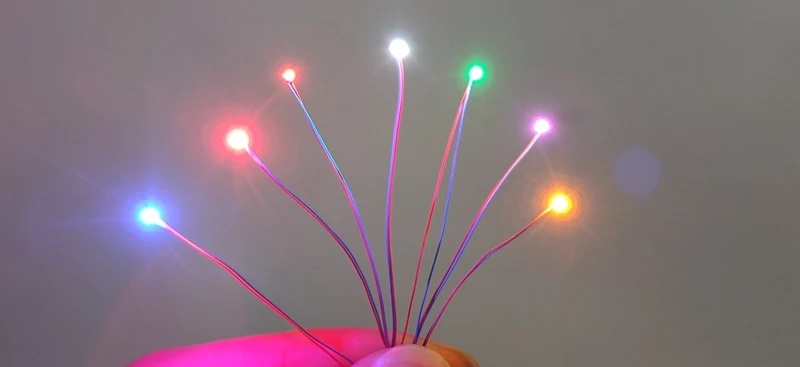

These are really tiny, measuring a 1.8mm "pimple"
on a 2mm x 2mm square base. 90 degree angle of view. Available in RED
GREEN YELLOW. Very bright in light output. Small enough to be placed behind
panels such as radio or other electronic equipment to give an authentic light display. Ideal for heli instrumen panels.
No other colours are made in this particular lighting device spec.
Available as a six pack mixed or two of each or all one colour

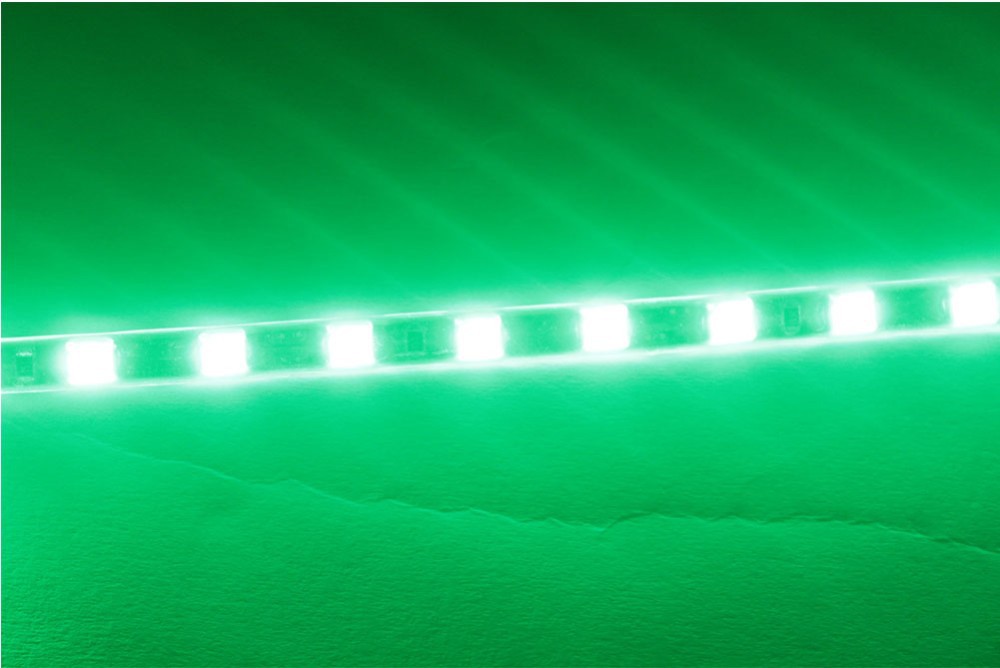

FLEXI STRIP SURFACE MOUNT LIGHTING
AVAILABLE IN RED, GREEN WHITE and AMBER.
SUPER BRIGHT AND THIN!
These are NOT standard LEDS mounted
on a strip but surface mount components.

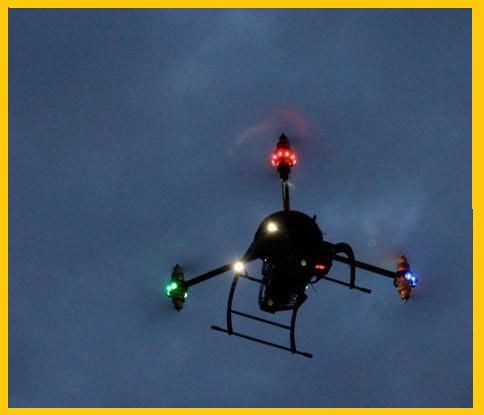

Photo above shows strips mounted on new MIKROKOPTER frame and powered by a LiPo battery. Segments will operate from any 6v+ to 12v battery. Full strip needs 12v.
Available in strips of 3/6/12/18 etc to 66. (43 inches long)
Lighting devices and only 2mm thick! Brilliant lights as shown in photo above.

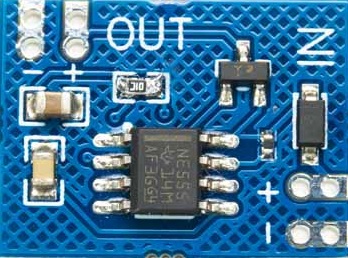

This small and lightweight board measures (1.5 inches X 3/4 inch) or approx 40mm X 20mm.
The LED booster typically boosts an input voltage of 1.5volts to an output voltage of 3 volts sufficient to power an LED or other small components. The LED booster operates at a very low current level and can give a new lease of life to what otherwise might be regarded as 'flat' batteries.
Ideal for a small model when just a landing light or - a SINGLE FLASHER UNIT (as mentioned above) - is required.
IT'S READY MADE.
All you have to do is fit the lighting device/connecting wires to board and add a single AA battery and a small on/off switch.
INCLUDES 5mm HIGH INTENSITY LIGHT & SINGLE AA BATTERY HOLDER.
These photographs show a Bolkow model fitted
with the earlier multiple second generation 5mm SPOT type
1600 mcd lighting devices and did NOT require to be
photographed in complete darkness or on wet ground, to show their intensity!
The latest lighting is even more intense.
Model by Paul Hamilton. Photographs COPYRIGHT of Paul Hamilton.
COMMON NAV LIGHT POSITIONS
NOTE: NAVIGATION LIGHTS are switched on when the aircraft is on the ground AND during flight and ONLY switched off when the aircraft has landed and switched off the engine(s).
Surprisingly, quite a number of modellers seem not to be aware of positions and operation of lighting
on aircraft and ask me with what lighting their particular model should be fitted!
I think researching YOUR particular model is the answer.
The positions shown above are fairly common. However..lighting positions DO vary from aircraft to aircraft EXCEPT for NAVIGATION LIGHTING (RED-GREEN-WHITE tailight).
IF a HELI is fitted with rear fuselage "winglets" (Agusta 109) then these may have NAV LIGHTS on them and also have white flashing strobes fitted.
YES!
The fitting of lighting is very simple.
Lighting devices have a useful life of thousands of hours (40,000 on average)
when run at their correct operating voltage and fitted AND used properly.
PLEASE NOTE.
Not all devices may be suitable for your model.
For instance, some Helicopters have Nav Lights set into the tips of wing stublets from the fuselage. These stub tips may be too thin to accomodate the Ultralights or PowerLights or 5mm diameter Standard and HYPERS or the Super 70/80 7mm x 7mm types. CENTURY/FUNKEY .30 size Agusta 109 (CN1073) being one type. However - They WILL accept the INTENSE 3mm diameter RED AND GREEN types available when tip position drilled out. (Ticklish job this)..Thin fixed wing wingtips could be another problem.
Many modellers have told me they are out of
their depth when dealing with lighting and associated wiring (or as some say) "not used to electricity"!
IF YOU CAN CONNECT A BATTERY to a couple of points, then you CAN fit lighting to your model! It's that easy. You will find the leaflets and diagrams that come with your order easy enough to follow, enabling you to set up your lighting properly. These are in no way "flat pack" type instructions! All you have to do is read them.
It is much easier to install lighting in a model when it is being constructed rather than when it is built.
ALL lighting purchases are accompanied by SIMPLE diagrams with simple instructions so that the modeller can fit the lighting with ease.
REMEMBER - although we are only dealing battery power here you should pay as much attention to installing your lighting as you do building the model. HOWEVER - It IS essential that the modeller reads the instructions first. . .AND follow them and accompanying SIMPLE drawings/diagrams for a trouble free lighting installation.
Advice BEFORE and AFTER you buy (although, if you read
the instructions that come with the goods you should not need to ask AFTER you buy!).
ALSO, if you ARE building a SCALE model, do research the original. . .it all helps.
NO expensive gimmicks to make the lights work.
Simple to set up.
You could not ask for a better specification than these. If you want VERY high intensity lighting of high quality then a set of Nav lights and Landing Lights by Lighting for Aeromodellers should be your choice.. Wide angles of view with very high intensity (especially when you use a fully charged battery!!)
SEND FOR PDF DETAILS OF ALL LIGHTING AVAILABLE.
GET THE FULL INFORMATION BEFORE MAKING ANY DECISION.
Ordering "blind" from this page does NOT make things quicker or easier.
Telephone calls and e-mails can help, but misunderstandings can (and do) occur if ordering WITHOUT reading about what you want first (and checking its suitability for your model)
The printed details contain everything you want to know - and more.
These are THE lights modellers have been looking for - for years. They are superb, very high intensity lights produced for serious applications by the electronics industry where high intensity lighting is required. Even the most critical of modellers should be pleased with them.
Reading about - and seeing what you are going to require is the best
bet. . . it saves time and trouble (especially if you get it wrong!)
NOW - - Treat yourself to some decent lighting.
You will not be disappointed.
You will be surprised as to what is available.
Goods may be ordered by UK and OVERSEAS
modellers by e-mail
AND
UK modellers may also pay by cheque (see PDF details). You can however pay by PAYPAL even if you do not have an account with them. See PAYPAL web pages.
BE AWARE THAT PAYMENTS BY AN E CHEQUE CAN TAKE 5 DAYS TO CLEAR FROM THE BANKING SYSTEM AND NO GOODS WILL BE SENT UNTIL THE CHEQUE IS CLEARED. Where possible use ordinary PAYPAL payment system for quick turnround of orders,.
UK POST AND PACKING.
£1 .50 for orders UNDER £10.00
£2 .50 for orders OVER £10.00 and will include Royal Mail 'Sign For' service.
Whichever postal method. Proof of Posting receipts will be obtained and held for 6 months
OR
A cheaper airmail service to EUROPE, AUSTRALIA, NEW ZEALAND & Middle East is available @ £3 .60
with no guarantee of compensation if packet goes astray.--------------------------------------------
DUE MAIL GOING MISSING - SORRY GOODS ARE NOT AVAILABLE TO
USA - CANADA - CARIBBEAN - SOUTH AMERICA - SOUTH AFRICA.
You should be aware that your local CUSTOMS OFFICE can be slow in passing your package to the mail authority in your area or contacting you IF duty is to be paid.
I will retain all "Proof of Posting" receipts.
PLEASE BE PATIENT. Airmail usually leaves the UK within 24 hours. Postal delivery/customs clearance times varies for different countries. A great deal depends on the efficiency of your LOCAL mail service AND YOUR LOCALITY in your country.
OVERSEAS PURCHASERS PAYMENT BY PAYPAL in Sterling ( GB POUNDS ONLY)
See note above re E-Cheques
Advertisements appear regularly in
Radio Control Model World
Model Helicopter World
Thank you for reading these details.
FLYING IS FUN!. . .FLY SAFELY
The written content and photographs of goods are the copyright of
LIGHTING for AEROMODELLERS & LIGHTING FOR AEROMODELS.
Photographs of aircraft are the copyright of model owners as mentioned accompanying the photographs.
Action will be taken against any infringements.
PAYPAL LOGO IS A REGISTERED TRADE MARKCartoons by kind permission of
Jeff Bucchino. Copyright of Jeff Bucchino.
http://www.wizardofdraws.com.
Latest update: 20 APRIL 2012...Minor changes.
It WILL however, operate
(a) TWO WHITE 5mm POWERCHIPS TOGETHER
OR
(b) TWO HIGH INTENSITY 5mm REDS TOGETHER.
OR
(c) A STANDARD PAIR OF HIGH INTENSITY 5mm WHITES
OR
(d) ONE STANDARD 5mm RED AND ONE STANDARD 5mm WHITE
There will be a slight extra charge for the POWERCHIP VERY high intensity types as they are more expensive to buy in.
This simple SINGLE or DOUBLE SYNCHRONISED unit for RED and/or WHITE lighting devices comes as a lightweight, small rubberised heatshrink covered package (1.5 inch X 1/2 inch x 1/4 inch thick) / (38mm x 15mm x 7mm - all approximate measurements. Can be tucked away anywhere on board a model. Operates from 4.8v or 6v without modifications
THE UNIT LOOKS SIMILAR TO THAT SHOWN ABOVE AND ARE HANDMADE TO ORDER.
Fitted with an 80 Lumens cool running HIGH INTENSITY WHITE LIGHT device & collimating lens.
May also now be fitted with a RED or GREEN lighting device and used as a large model quite high intensity nav light. SIZE = 20mm diameter X 13mm front to back.
Throws an intense spot 1 FOOT diameter (300 mm) onto a flat surface from about 10 FEET (3m) away.
Similar type with heatsink sold by a well known German model helicopter firm for £30.00!
This is the same device WITHOUT the rear heatsink plate.
The lighting device can be removed from the unit for replacement if ever required.
Wired and comes with appropriate resistor to operate from 4.8v to 6v.
Can be used with both types of flasher if required at slight extra cost. Comes fitted with lighting device and 6" connecting wires.
NOTE: From a flight safety point of view - (and plain common sense) - the lighting shown on this web page
should NOT be operated from the same battery supply as the receiver/servos.
Some of these lights make quite a demand of a battery pack.
Using a receiver battery pack is certainly not recommended.
4.8v is quite adequate but should be 1200 milliamps or more.
You CAN NOW OBTAIN AAA NiMH cells of 2500 milliamps which will be quite adequate for lighting.
YOU DO NOT NEED A HIGH VOLTAGE FOR LIGHTING as most devices use less than 4 volts
Voltages above the max voltage of a device without use of a resistor (or similar)
WILL result in destruction of the device.
Please state the voltage the lights will be operated from (4.8V TO 6V) BUT SEE safety note above.
The resistor value / wattage is mathematically worked out. This allows the lighting devices to operate at maximum brilliancy and efficiency. it should not be changed for any other value or wattage.
If not controlled by a resistor when battery operated or a special pcb circuit if a regulated voltage is used, can run quite hot. These lighting devices now included the appropriate voltage/wattage resistor for cool operations FROM 4.8V TO 6v. You just connect them up to the device and power supply as per the leaflet/diagram that comes with the devices.
These are superb NAVIGATION and LANDING LIGHTS as hundeds of modellers in the UK and overseas have already found out.
Comes with manufacturers comprehensive instruction sheet (which you should read) showing various uses of the switch so that the full potential of the RC SWITCH can be understood and taken advantage of.
HEATSHRINK TUBING
This IS THE essential item you should use for wiring connection insulation
NOT sticky black plastic/Sellotape/Decorators masking tape OR - (Shudder)-Elastoplaster(s)!!
Several sizes from 1.3mm to 19.5mm.
All tubing shrinking at a 2:1 ratio.
Robust ON/OFF switches
Miniature Microswitches for retract or flap operated landing lights.
LIGHTING DEVICE HOLDER with connecting wire. They allow easy insertion and removal of SPOT type devices without soldering of devices.
BATTERY BOX For 4.8v with its own ON/OFF switch.Screwed rear lid. Also standard open type 4.8v.
PP3 clip type available and a 2 x AA box with its own ON/OFF switch and screwed lid.
FLEXIBLE HOOKUP WIRE RED/GREEN/BLACK. 2.8mm diam. 6 AMP MAX
THIS ITEM NOT SENT OUTSIDE THE UK due to package weight/postal charges.
THE BEST fuel tubing you can buy.
Connectors mainly in 3mm tubing sizes.
(WREN GT's). Ball valves on/off in 4mm and 6mm.
Tubing clips for secure 4mm AND 6mm tube routing-stick of 10 clips.
FILTERS available for 3 and 4 and 6mm tube.
THESE ARE QUALITY PLUGS AND SOCKETS
2 PIN 20mm LONG X 10 WIDE X 5mm THICK WHEN CONNECTED TOGETHER. Positive locking.
3 PIN AND 4 PIN 20mm LONG X 15mm WIDE X 5mm THICK WHEN CONNECTED TOGETHER. Positive locking.
Ideal for lighting connections where required. These can also be made up for extension leads. They also fit HITEC and FUTABA receivers and servo sockets and can be secured for extra safety by heatshrink tubing of the correct diameter (5mm).
Positive fitting - no slop - solid pins. As used in the electronics industry. MAX 3 amps.
No problem with lighting.
Available as a six pack mixed or two of each or all one colour
AVAILABLE IN RED, GREEN WHITE and AMBER.
SUPER BRIGHT AND THIN!
Photo above shows strips mounted on new MIKROKOPTER frame and powered by a LiPo battery. Segments will operate from any 6v+ to 12v battery. Full strip needs 12v.
This small and lightweight board measures (1.5 inches X 3/4 inch) or approx 40mm X 20mm.
The LED booster typically boosts an input voltage of 1.5volts to an output voltage of 3 volts sufficient to power an LED or other small components. The LED booster operates at a very low current level and can give a new lease of life to what otherwise might be regarded as 'flat' batteries.
Ideal for a small model when just a landing light or - a SINGLE FLASHER UNIT (as mentioned above) - is required.
IT'S READY MADE.
All you have to do is fit the lighting device/connecting wires to board and add a single AA battery and a small on/off switch.
INCLUDES 5mm HIGH INTENSITY LIGHT & SINGLE AA BATTERY HOLDER.
The latest lighting is even more intense.
Model by Paul Hamilton. Photographs COPYRIGHT of Paul Hamilton.
NOTE: NAVIGATION LIGHTS are switched on when the aircraft is on the ground AND during flight and ONLY switched off when the aircraft has landed and switched off the engine(s).
I think researching YOUR particular model is the answer.
The positions shown above are fairly common. However..lighting positions DO vary from aircraft to aircraft EXCEPT for NAVIGATION LIGHTING (RED-GREEN-WHITE tailight).
IF a HELI is fitted with rear fuselage "winglets" (Agusta 109) then these may have NAV LIGHTS on them and also have white flashing strobes fitted.
Not all devices may be suitable for your model.
For instance, some Helicopters have Nav Lights set into the tips of wing stublets from the fuselage. These stub tips may be too thin to accomodate the Ultralights or PowerLights or 5mm diameter Standard and HYPERS or the Super 70/80 7mm x 7mm types. CENTURY/FUNKEY .30 size Agusta 109 (CN1073) being one type. However - They WILL accept the INTENSE 3mm diameter RED AND GREEN types available when tip position drilled out. (Ticklish job this)..Thin fixed wing wingtips could be another problem.
IF YOU CAN CONNECT A BATTERY to a couple of points, then you CAN fit lighting to your model! It's that easy. You will find the leaflets and diagrams that come with your order easy enough to follow, enabling you to set up your lighting properly. These are in no way "flat pack" type instructions! All you have to do is read them.
It is much easier to install lighting in a model when it is being constructed rather than when it is built.
ALL lighting purchases are accompanied by SIMPLE diagrams with simple instructions so that the modeller can fit the lighting with ease.
REMEMBER - although we are only dealing battery power here you should pay as much attention to installing your lighting as you do building the model. HOWEVER - It IS essential that the modeller reads the instructions first. . .AND follow them and accompanying SIMPLE drawings/diagrams for a trouble free lighting installation.
You could not ask for a better specification than these. If you want VERY high intensity lighting of high quality then a set of Nav lights and Landing Lights by Lighting for Aeromodellers should be your choice.. Wide angles of view with very high intensity (especially when you use a fully charged battery!!)
GET THE FULL INFORMATION BEFORE MAKING ANY DECISION.
Ordering "blind" from this page does NOT make things quicker or easier.
Telephone calls and e-mails can help, but misunderstandings can (and do) occur if ordering WITHOUT reading about what you want first (and checking its suitability for your model)
The printed details contain everything you want to know - and more.
These are THE lights modellers have been looking for - for years. They are superb, very high intensity lights produced for serious applications by the electronics industry where high intensity lighting is required. Even the most critical of modellers should be pleased with them.
NOW - - Treat yourself to some decent lighting.
UK modellers may also pay by cheque (see PDF details). You can however pay by PAYPAL even if you do not have an account with them. See PAYPAL web pages.
BE AWARE THAT PAYMENTS BY AN E CHEQUE CAN TAKE 5 DAYS TO CLEAR FROM THE BANKING SYSTEM AND NO GOODS WILL BE SENT UNTIL THE CHEQUE IS CLEARED. Where possible use ordinary PAYPAL payment system for quick turnround of orders,.
£2 .50 for orders OVER £10.00 and will include Royal Mail 'Sign For' service.
Whichever postal method. Proof of Posting receipts will be obtained and held for 6 months
INTERNATIONAL ORDERS MAILING
The following are the new ROYAL MAIL postal charges from 1st May 2012
A basic SMALL PACKET BY AIRMAIL TO EUROPE = £6.50
To be signed for where available.
AUSTRALIA, NEW ZEALAND & Middle East = £8.50
To be signed for where available.
The following are the new ROYAL MAIL postal charges from 1st May 2012
A basic SMALL PACKET BY AIRMAIL TO EUROPE = £6.50
To be signed for where available.
AUSTRALIA, NEW ZEALAND & Middle East = £8.50
To be signed for where available.
OR
A cheaper airmail service to EUROPE, AUSTRALIA, NEW ZEALAND & Middle East is available @ £3 .60
with no guarantee of compensation if packet goes astray.
USA - CANADA - CARIBBEAN - SOUTH AMERICA - SOUTH AFRICA.
You should be aware that your local CUSTOMS OFFICE can be slow in passing your package to the mail authority in your area or contacting you IF duty is to be paid.
I will retain all "Proof of Posting" receipts.
PLEASE BE PATIENT. Airmail usually leaves the UK within 24 hours. Postal delivery/customs clearance times varies for different countries. A great deal depends on the efficiency of your LOCAL mail service AND YOUR LOCALITY in your country.
OVERSEAS PURCHASERS PAYMENT BY PAYPAL in Sterling ( GB POUNDS ONLY)
See note above re E-Cheques
Radio Control Model World
Model Helicopter World
The written content and photographs of goods are the copyright of
LIGHTING for AEROMODELLERS & LIGHTING FOR AEROMODELS.
Photographs of aircraft are the copyright of model owners as mentioned accompanying the photographs.
Action will be taken against any infringements.
PAYPAL LOGO IS A REGISTERED TRADE MARK
